Setting up two Meeting Owl's

Setting up two Meeting Owl's

With Owl Connect, users can pair two Owls to extend their audio and video range by 8 feet (2.5m) in any direction.



Additional Owl Connect Info.



Device Limit:

Only 2 devices can be paired using Owl Connect. See all possible pairing combinations here.



Best Practices:

Follow some of our tips for having the best Owl Connect experience below:

  • Both Owls are running the same software version. Ideally, this is the latest software version.

  • Avoid placing your Owls in areas with bright lights directly behind or overhead.

  • Ensure there are no obstructions between the Owls.

  • Rotate the Owls so that their eye lights are facing one another.



Wi-Fi Usage:

Only the Primary Owl needs to connect to Wi-Fi once in order to initiate this feature, but both are recommended in case you want to switch Owls at any point.



Bluetooth Usage:

Setting up an Owl Connect network utilizes Bluetooth. Once Owl Connect is set up, Bluetooth is no longer used.



Pairing Continuity:

After successfully pairing in the Meeting Owl app, the Owls will remain paired between meetings and reboots, unless any of the following occur:

  • The Secondary Owl is plugged into a computer via USB

  • One of the Owls become part of another Owl Connect pair

  • The pair is manually disconnected in the Meeting Owl app

  • One or both of the Owls are reset in the Meeting Owl app






What are the prerequisites for Owl Connect?



Available for these devices:



mo3 icon.png

mop icon 44.png

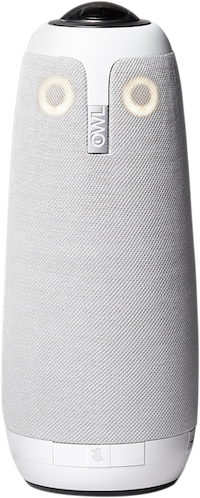

Meeting Owl 3

Meeting Owl Pro

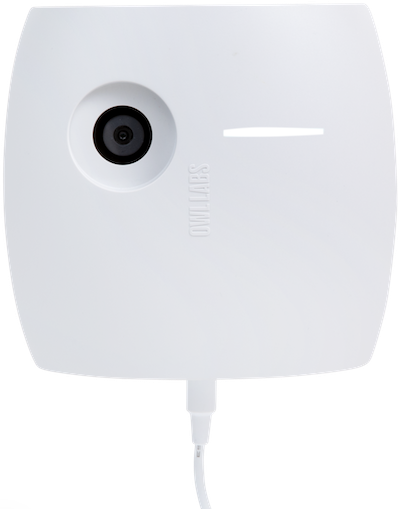

Whiteboard Owl

Minimum software: 4.7.0.5+

Minimum software: 1.8.0.29+

Minimum software: 2.7.0.23+



Available on these platforms:



app mobile.png

Meeting Owl App

Available Mode(s): Default, By-Meeting






How do I pair my Owls using Owl Connect?



I. Setting up your Owls:

  1. Plug your USB cable into your Primary Owl, this will be the Owl that is attached to your host computer and will be at the front of the room, closest to your TV.

  2. Plug Power adapters into both Owls and plug the adapters into outlets. Wait until the Owl's eyes stop pulsing and you hear a hoot.

  3. Place your Secondary Owl 3-8 feet (1-2.5m) away from your Primary Owl, without any obstructions in between. This Owl will not be connected to a computer.

  4. Ensure that the Owls' eyes are facing one another. The camera lens on top of each Owl must be able to see the other Owl's eyes blink in order to pair.

  5. Ensure there are no bright backlights or bright overhead lighting above either Owl. The camera lens on top of each Owl must be able to see the other Owl's eyes blink in order to pair, and this could affect the visibility.





II. Pairing your Owls in the Meeting Owl App:

  1. Download or open the Meeting Owl App. Ensure that your app is updated to the latest version by checking in your device's App Store.

  2. Select your Primary Owl from the Nearby list. The Owl's eyes will blink to indicate that it has been selected.

  3. Select the settings icon (cog-1 (1).png) in the top right corner.

  4. From the list, select Pair Devices.

  5. Select Next, then Find Nearby Devices.

  6. From the list, select your Secondary Owl.

  7. Select Pair Devices. The Owls will blink at each other during pairing and at the beginning of each meeting to find each other. Ensure there are no obstructions between the Owls, as the camera lens on top of each Owl must be able to see the other Owl's eyes blink in order to pair.

  8. A confirmation message will pop up to indicate that the Owls are paired. Select Done.

  9. In a meeting, you can confirm the Owls are properly paired and visible to one another if you see the Paired icon (icon owl connect copy.png) in the corner of your Owl's video.
